ContactIC card・tag tester
UHF tag tester
T9000
You can plot and evaluate the communication performance of UHF tags while stepping the power between 800MHz and 1000MHz frequencies. It is also possible to inspect only the specified measurement points and judge whether they are good or bad.
You can plot and evaluate the communication performance of UHF tags while stepping the power between 800MHz and 1000MHz frequencies. It is also possible to inspect only the specified measurement points and judge whether they are good or bad.

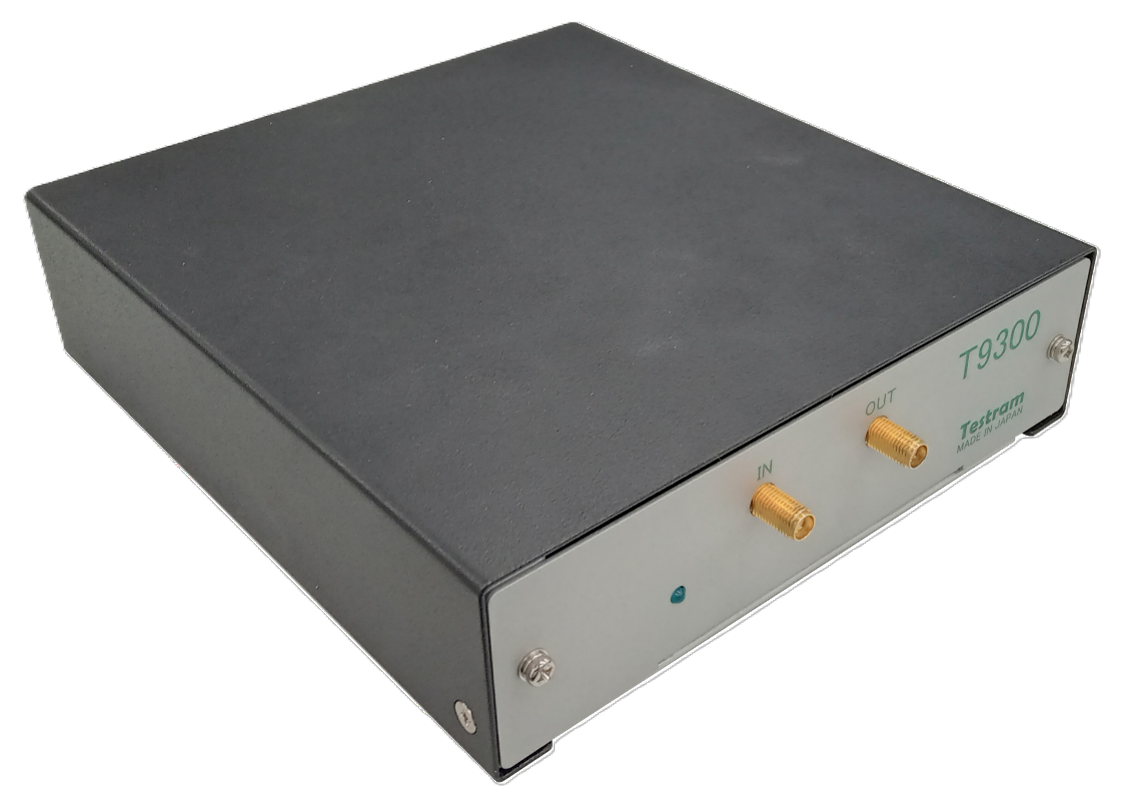

Tag Tester for UHF Band Mass Production
T9300
All inspection points can be set and PASS/FAIL can be determined at any inspection point, enabling total inspection at mass-production equipment.
All inspection points can be set and PASS/FAIL can be determined at any inspection point, enabling total inspection at mass-production equipment.
![[LF band / HF band resonance frequency inspection machine]](images/products/2_thumb.png)
[LF band / HF band resonance frequency inspection machine]
T8200PRO
It is an inspection device that can inspect the resonance frequency characteristics of non-contact IC cards, RFID tags, NFC products, and R / W antennas, and can also perform UID reading inspection with the optional communication function.
It is an inspection device that can inspect the resonance frequency characteristics of non-contact IC cards, RFID tags, NFC products, and R / W antennas, and can also perform UID reading inspection with the optional communication function.

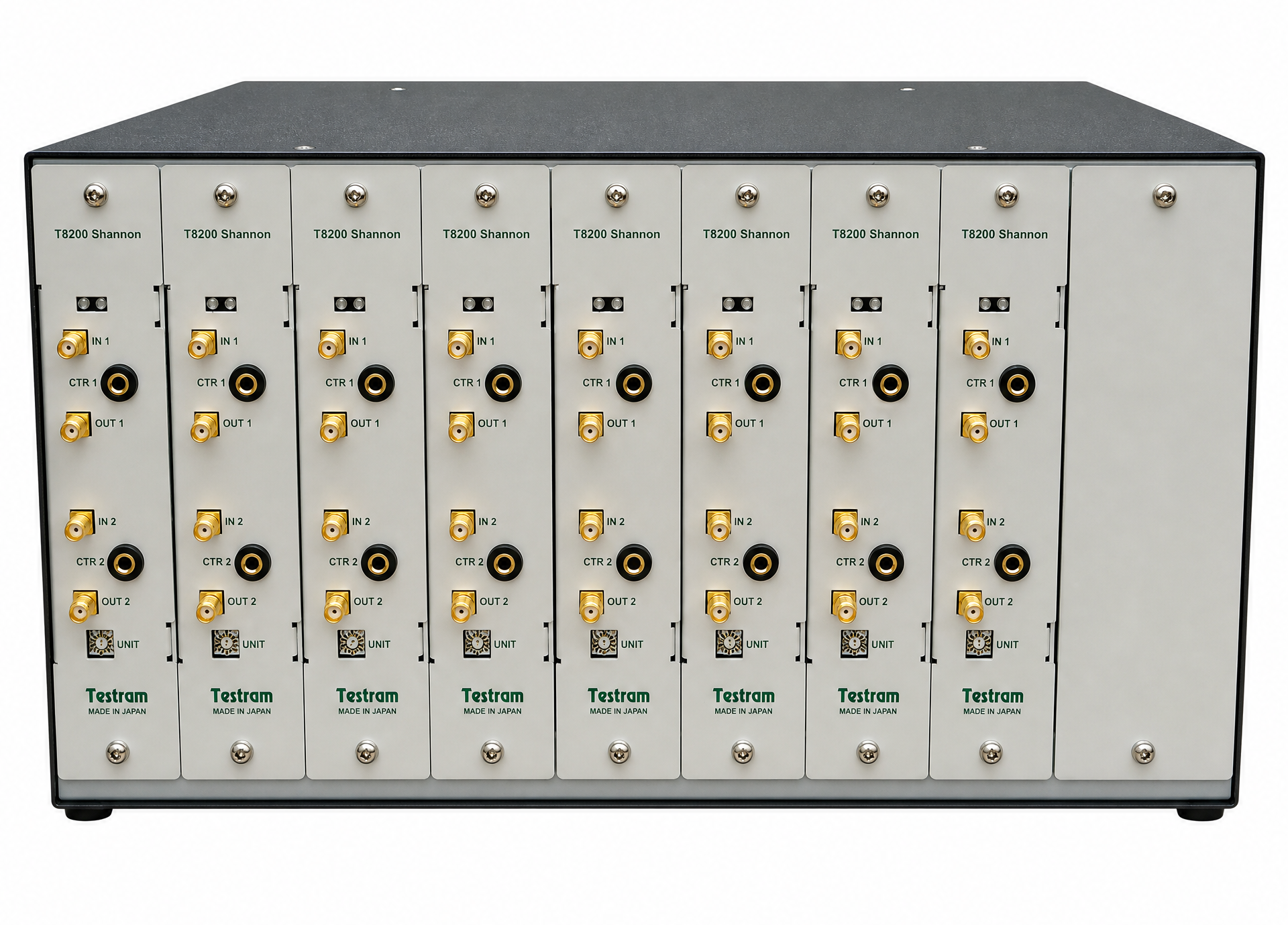

RFID tester for HF band mass production
T8200Shannon
This is an inspection device that simultaneously measures the resonance frequency of Smart cards and RFID tags on up to 32 channels at high speed.
Ideal for inspecting inlay sheets and RFID antennas before IC mounting.
This is an inspection device that simultaneously measures the resonance frequency of Smart cards and RFID tags on up to 32 channels at high speed.
Ideal for inspecting inlay sheets and RFID antennas before IC mounting.
Contact IC card issuing device
T8500
This device issues high-security contact IC cards that comply with ISO/IEC 7816.
An optional R/W for contactless IC cards can be installed to enable the issuance of contactless IC cards.
This device issues high-security contact IC cards that comply with ISO/IEC 7816.
An optional R/W for contactless IC cards can be installed to enable the issuance of contactless IC cards.
Power Variable Attenuator for HF Band RFID
TAT150Attenuates the electric field intensity level, enabling communication performance testing for IC tags, IC cards, NFC, etc.
IC card unit
In addition to the equipment incorporating our tester, we have abundant achievements in custom-made production equipment.
[Test ram production equipment]
We accept consultations on production equipment for IC cards and RFID tags with your original specifications.
[Test ram production equipment]
We accept consultations on production equipment for IC cards and RFID tags with your original specifications.
Contact / non-contact IC card inspection and issuing device
It is an inspection issuing device that inspects contact type and non-contact type IC cards, issues 0th and 1st, and performs final test before secondary issuance. Compatible with combination type and dual type IC cards.
Contact / non-contact COT inspection issuing device
This is a device that inspects contact / non-contact IC card modules at the COT (Chip On Tape) stage. It is also possible to issue 0th and 1st at the same time.
IC card module peeling inspection device
It is an inspection device that applies stress to the IC card in the long side direction and the short side direction to detect the adhesion failure of the IC card module mounted on the contact type IC card.
Circular RFID tag inspection device
This is a device that automatically performs resonance frequency testing and communication testing of irregularly shaped RFID tags.
Customization for additional inspection processes is also available.
Customization for additional inspection processes is also available.
IC card related products
Bending stress durability testing equipment
Stress endurance tester for bending characteristics of cards conforming to ISO / IEC10373-1 or JISX6305-1 standards
Torsion stress durability testing equipment
Stress endurance tester for twisting characteristics of cards conforming to ISO / IEC10373-1 or JISX6305-1 standards
Module part bending stress durability testing
Stress endurance tester for bending characteristics specialized for module parts of IC cards conforming to ISO / IEC 24789-2 standards
Three wheel testing equipment
Stress endurance tester for pressurization characteristics of IC card modules conforming to ISO / IEC10373-3 or JISX6305-3 standards
Handheld card counter
EMP1100C
You can count up to 500 cards just by tracing the side of the card, and you can also count cumulatively.
★ With non-contact charger
You can count up to 500 cards just by tracing the side of the card, and you can also count cumulatively.
★ With non-contact charger

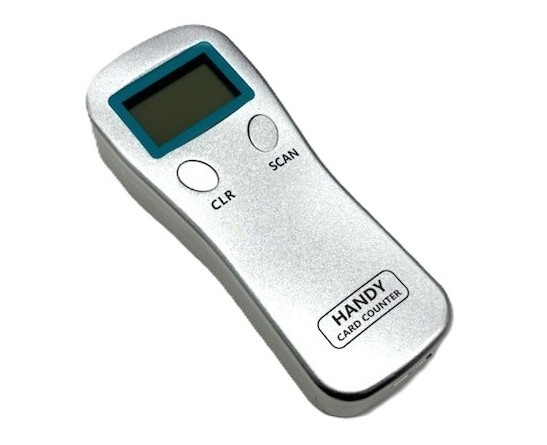

Color core card compatible card counter
CM-1
A new handheld card counter that also supports color core cards and metal cards.
A new handheld card counter that also supports color core cards and metal cards.
Semiconductor tester
Open short tester
V2048
・ Maximum 2048 pins (up to 64 pins x 32 can be added)
・ Equipped with a test head in the standard configuration
・ Function functions and DPS are available as options
・ Maximum 2048 pins (up to 64 pins x 32 can be added)
・ Equipped with a test head in the standard configuration
・ Function functions and DPS are available as options
Smart card and RFID tag related products
LED Prelam Sheet Inlay
Inlay for smart cards with LED that glows when held over an IC card reader
IR Blockingfilm
Innovative alternative to IR blocking inks
Holographic Laminate PVC
High quality holographic laminates designed for loyalty cards
Hot-stampingRobustNFCTag
Multifunctional IC tags that can be used for clothing, athletic shoes, textiles, etc.
