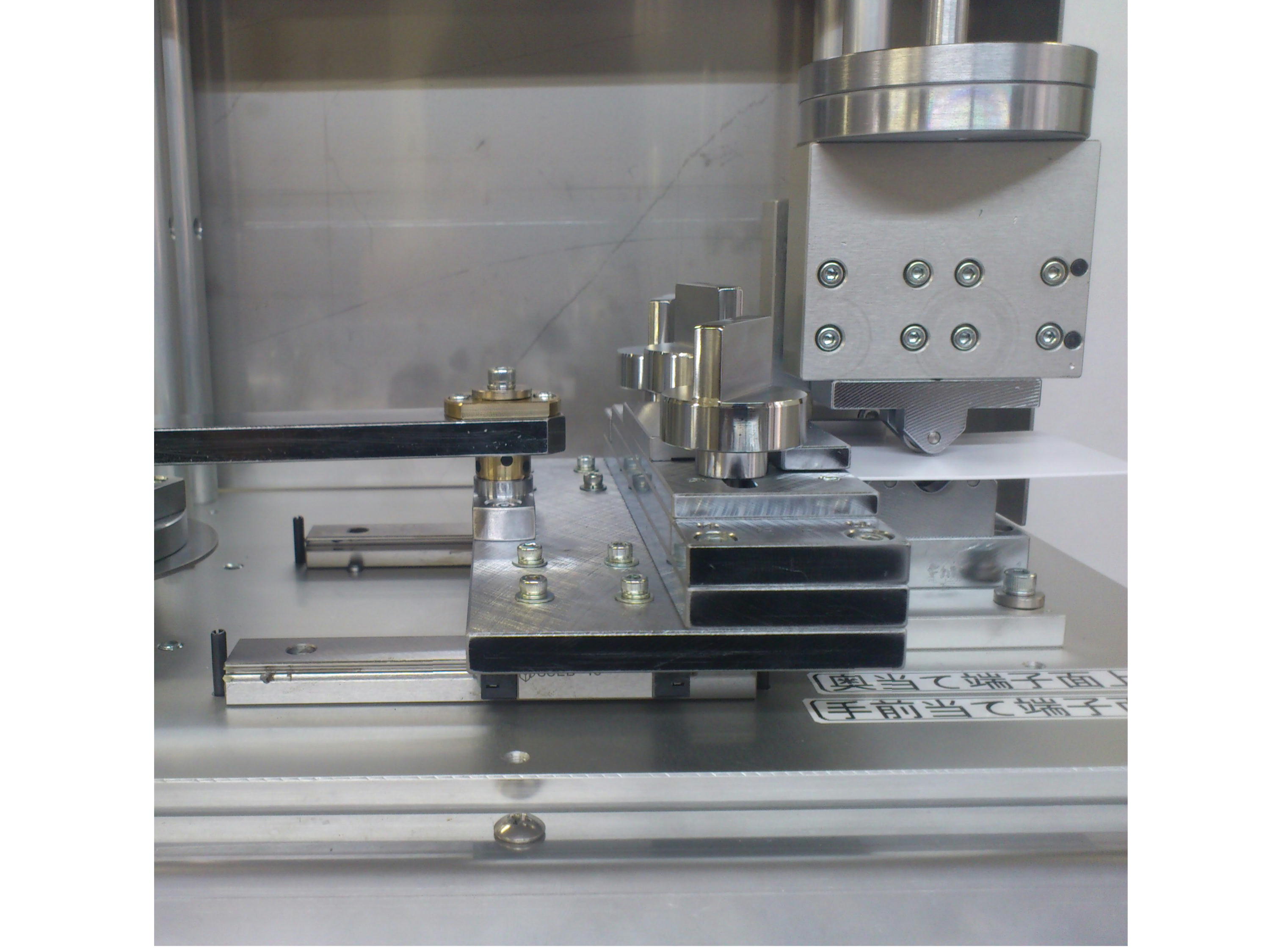

[Card set]

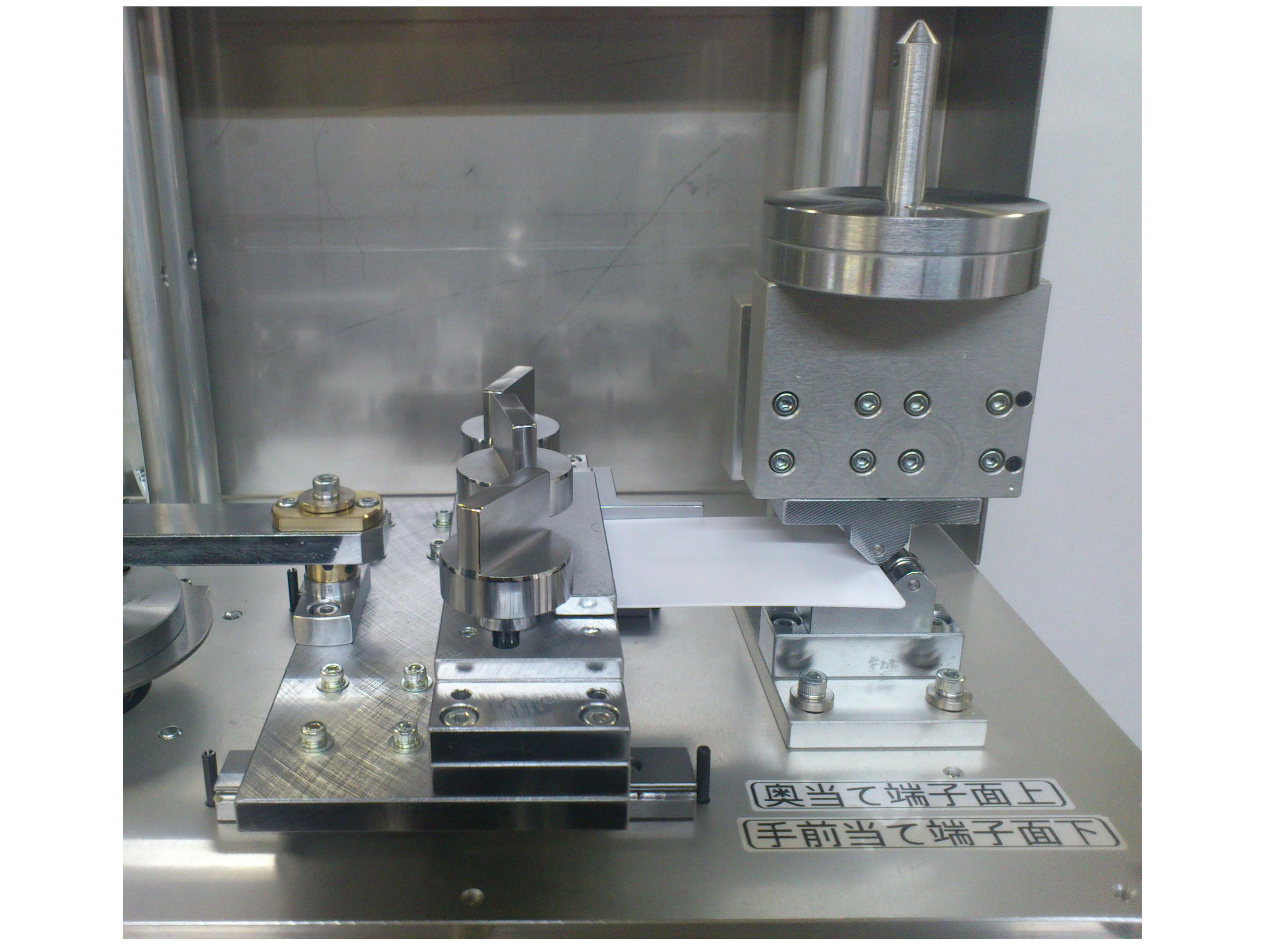

[8N load test]

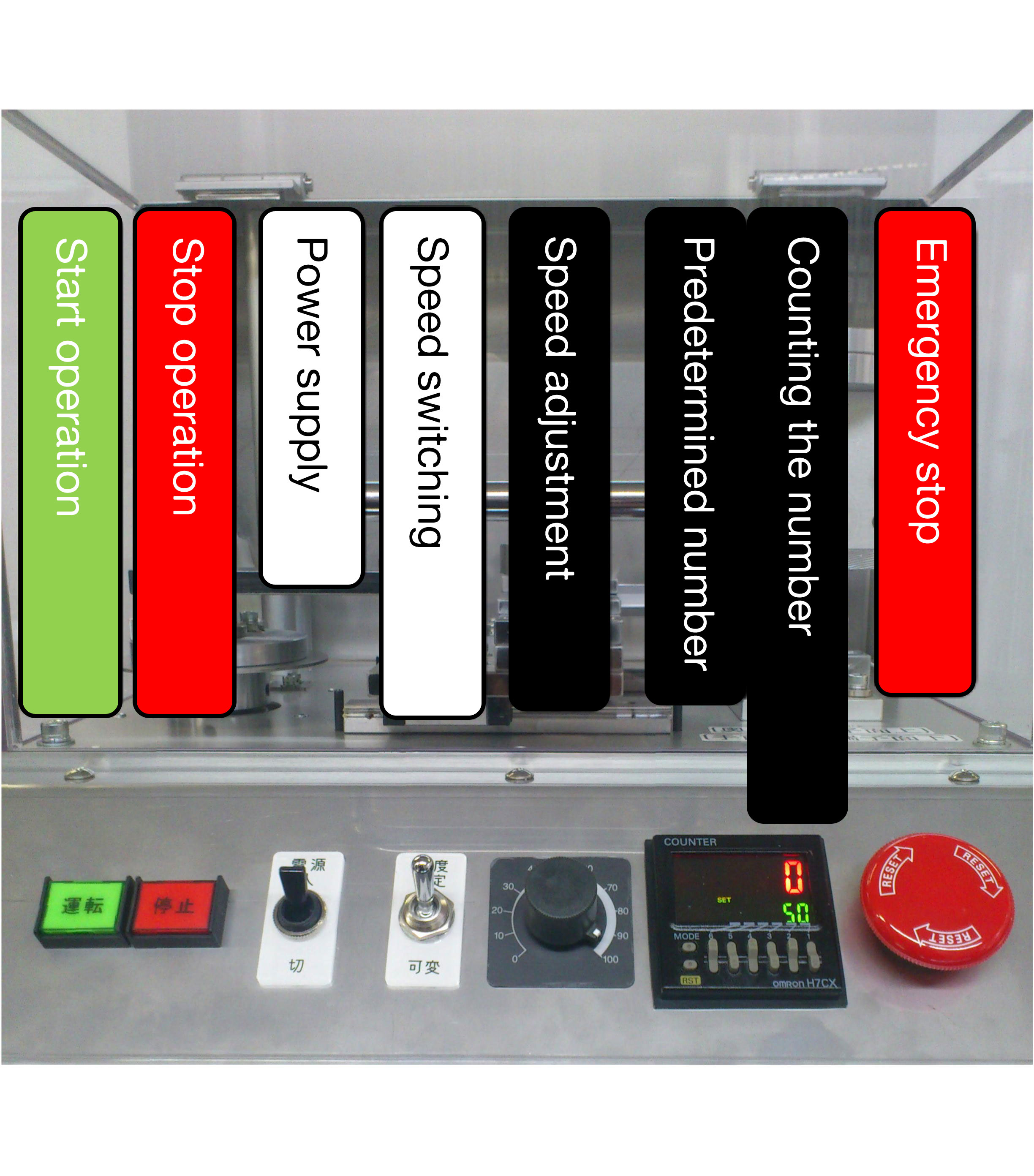

[Operation / display unit]
[3-point roller durability test (video)]
ISO / IEC10373-1 or JISX6305-3 compliant

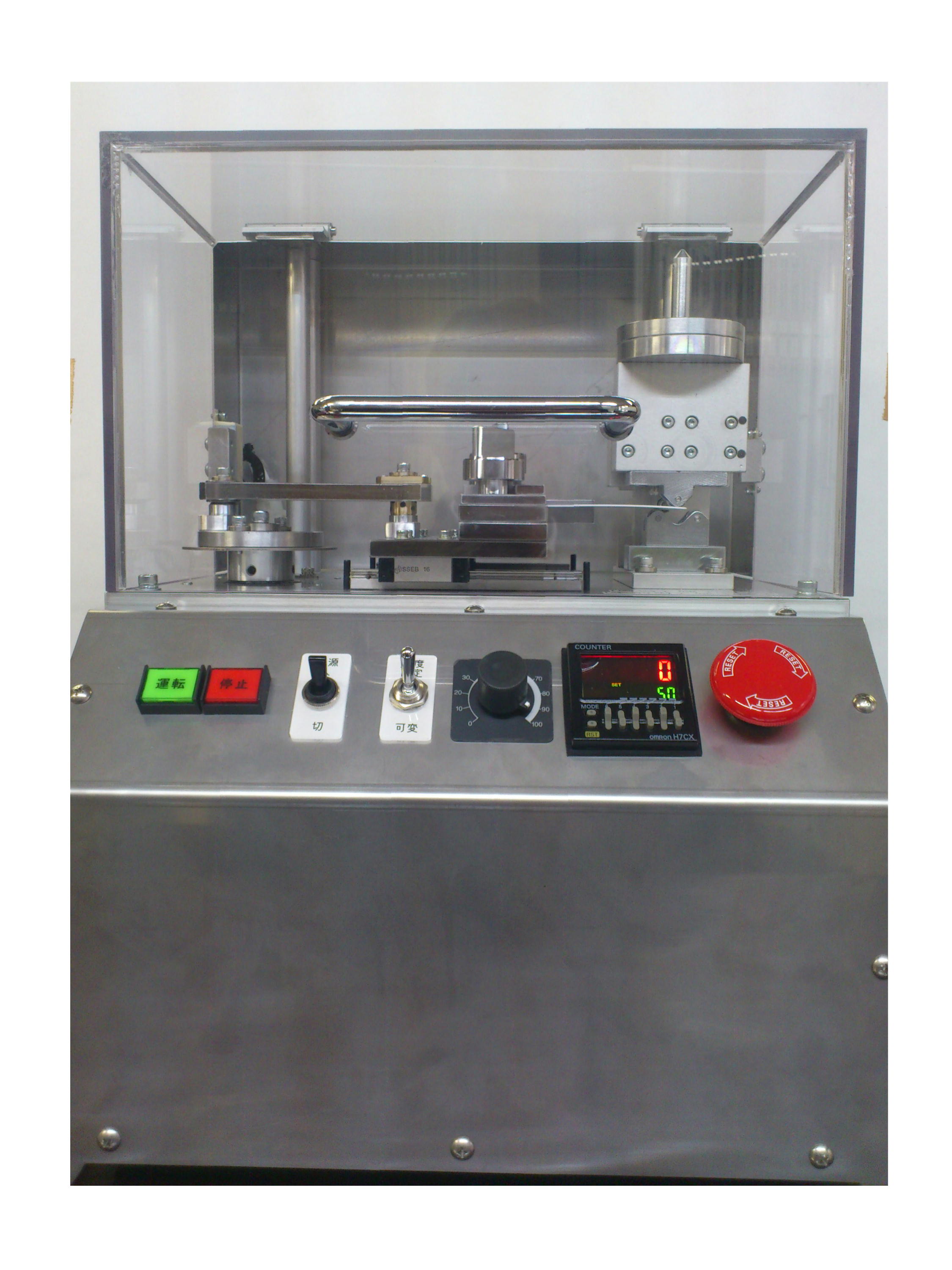

It is a device that performs a stress endurance test on the pressurization characteristics of the module part of an IC card.
The card moves periodically between the three feed rollers to measure the mechanical reliability of the module.
A 6-terminal card can also be used by replacing the guide parts.
An emergency stop switch and an interlock cover are used as a safety mechanism.
This product is a made-to-order product, so please contact our sales staff for delivery.
The card moves periodically between the three feed rollers to measure the mechanical reliability of the module.
A 6-terminal card can also be used by replacing the guide parts.
An emergency stop switch and an interlock cover are used as a safety mechanism.
This product is a made-to-order product, so please contact our sales staff for delivery.
|
specification
|
|
|
Basic functions
|
Number of tests: 1 sheet
Test speed: Fixed 30 times / minute, variable 10 to 50 times / minute Pressurization test unit: 8N load (weight) Option: Weight for 15N |
|
Control panel
|
Start switch, stop switch, main power switch
Fixed speed variable selection switch, speed adjustment volume 6-digit counter (display, number of times setting button) Emergency stop switch |
|
Others
|
When stopped, it returns to the origin. (Except during emergency stop)
It is possible to change to 8-terminal card and 6-terminal card by changing the guide parts. |
|
Safety mechanism
|
Emergency stop switch, interlock cover
|
|
External dimensions
|
Body: W330.0 x H432.0 x D322.0 (mm)
|
|
Power supply
|
AC100V
|
