We support you in resolving RFID communication problems and other issues!
The T8200PRO is a resonant frequency tester compatible with IC cards, NFC tags, and other devices.
Supports LF and HF bands, enabling measurement of resonance frequency, attenuation, and Q-factor, plus optional reading of unique ID (UID).
Various factors can cause RFID malfunctions, including “mismatched resonance frequencies with the reader/writer” or “internal antenna breakage.” The T8200PRO can be used to identify such defect causes.
Supports LF and HF bands, enabling measurement of resonance frequency, attenuation, and Q-factor, plus optional reading of unique ID (UID).
Various factors can cause RFID malfunctions, including “mismatched resonance frequencies with the reader/writer” or “internal antenna breakage.” The T8200PRO can be used to identify such defect causes.
T8200PRO Video
T8200PRO Inspection Target
RF tag
Card-type / Label-type
Coin-shaped, etc.
NFC-equipped products
Smartphone and earphones
Cameras, thermometers, etc.
reader/writer
Floor-standing/Tabletopb
Handheld type, etc.
Contactless Power Transfer Coil
Power Inductor
Ultrasonic sensor
etc.
T8200PRO Use Cases
Measure the characteristics of the RFID developed
Whether the developed RFID tag has the resonance frequency as designed
It can be used for confirmation work.
It can be used for confirmation work.
Stable quality of shipments
The user simply sets the criteria to stabilize the quality,
It can be inspected.
It can be inspected.
Find out the difference between multiple RFIDs
It can be used for selection work when purchasing and delivering.
You can easily compare and select the most suitable products from the products of multiple companies.
You can easily compare and select the most suitable products from the products of multiple companies.
Bring to site for inspection
Lightweight and compact, easy to carry, troubles in the field, etc.
You can use it to solve the problem. (Because it uses a USB power supply, a laptop computer
If you have it, you can easily carry it and inspect it.)
You can use it to solve the problem. (Because it uses a USB power supply, a laptop computer
If you have it, you can easily carry it and inspect it.)
Find out the difference between multiple RFIDs
The T8200PRO can be incorporated and used for inspection inside mass production equipment.
* When using the T8200 PRO DIO compatible version (PLC compatible version)
* When using the T8200 PRO DIO compatible version (PLC compatible version)

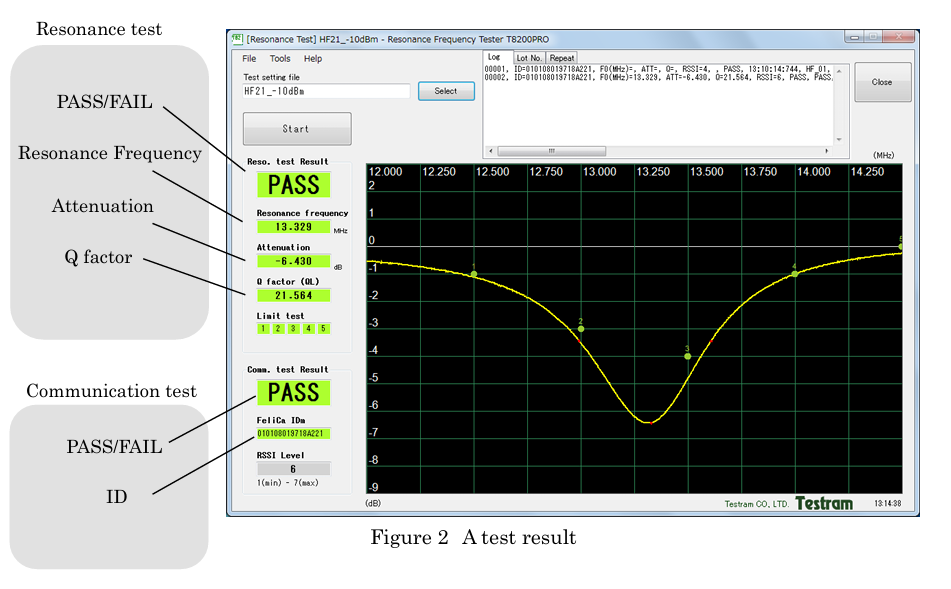

Measurement screen of T8200PRO
The T8200PRO can measure parameters such as “resonance frequency,” “Q-factor,” and “UID (IDm).”
※ UThe ID (IDm) measurement function is an optional feature.
※ UThe ID (IDm) measurement function is an optional feature.
Related Lists
- [T8200PRO] How to set the resonance characteristic inspection by transmission and the resonance characteristic inspection by reflection
- [T8200 PRO] What are loaded Q and unloaded Q?
- [T8200PRO] Comparison of measurement results of resonance characteristics due to transmission and resonance characteristics due to reflection
- [T8200PRO] Communication function (option) setting method
- [T8200PRO] Download setting file
[Antenna for card] Probe for communication inspection
At the same time as measuring the resonance frequency, read the UID (IDm for FeliCa).
You can use it while identifying and confirming the cards individually.
At the same time as measuring the resonance frequency, read the UID (IDm for FeliCa).
You can use it while identifying and confirming the cards individually.
[Antenna for tag] Probe for inspection (antenna)
Various antennas are available for various tag shapes.
* We can also design for special inspections that do not apply.
Various antennas are available for various tag shapes.
* We can also design for special inspections that do not apply.
Convenient functions of T8200PRO
T8200PRO specifications
|
Specification
|
|
|
Measurement method
|
Non-contact resonance frequency measurement by magnetic field coupling
|
|
Measurement details
|
Amplitude of transmitted voltage or reflected voltage
|
|
Inspection item
|
Resonance frequency, attenuation, Q value, option: Unique ID (UID, IDm) read
|
|
UID read-enabled protocol ※ 1)
|
ISO14443A(MIFARE Classic, MIFARE Ultralight): UID
ISO14443B: PUPI FeliCa: IDm ISO15693(Tag-it HF-I Plus/Pro, I・CODE SLIX2): UID |
|
Measurement points
|
100～2048 point
|
|
Inspection time ※ 2)
|
No ID reading inspection：0.5 sec(typ)
With ID reading inspection：1 sec(typ) (When the number of measurement points = 1000) |
|
Inspection result / inspection waveform storage function
|
Inspection log file (csv):
Inspection time, ID, PASS / FAIL, resonance frequency, attenuation, Q value Waveform data: csv, jpg format |
|
Frequency setting range
|
10KHz～ 1200MHz
|
|
Applied power (@ 50Ω load)
|
－30～+15 dBm
|
|
DIO Circuit type
|
Insulation (photocoupler) input / output
|
|
DIO Absolute maximum rating of terminals
|
Input terminal: Input forward current 50mA Output terminal: Forward voltage 80V, reverse voltage 7V, forward current 50mA
|
|
System requirements
|
PC(OS): Windows7,8.1,10,11
USB 2.0 or higher |
|
Power supply
|
USB bus power (current consumption 500mA or less)
|
|
appendage
|
USB cable, coaxial cable (500 mm 2 pcs), Windows installation CD,Short plug (for reflection measurement)
|
|
Dimensions, weight
|
125 (W) x 165 (D) x 40 (H) mm (excluding protrusions) ,Approx0.8kg
|
|
operating temperature
|
23°C ±5°C (within ±3°C of calibration execution temperature)
|
※1) "Tag-it HF-I" is a registered trademark of TEXAS INSTRUMENTS, "I ・ CODE SLI" and "MIFARE" are registered trademarks of NXP Semiconductors, and "FeliCa" is a registered trademark of Sony Corporation.
※2) This unit is not an RFID reader / writer. It is not a device intended to evaluate the communication performance of the inspection target.
The UID may not be readable depending on the inspection target.
※3) The inspection time depends on the inspection settings of your PC and instrument, the characteristics of the inspection target, etc.
※4）For accurate use, please leave the power on for 30 minutes before use.
※Design and specifications are subject to change without notice.
※2) This unit is not an RFID reader / writer. It is not a device intended to evaluate the communication performance of the inspection target.
The UID may not be readable depending on the inspection target.
※3) The inspection time depends on the inspection settings of your PC and instrument, the characteristics of the inspection target, etc.
※4）For accurate use, please leave the power on for 30 minutes before use.
※Design and specifications are subject to change without notice.
