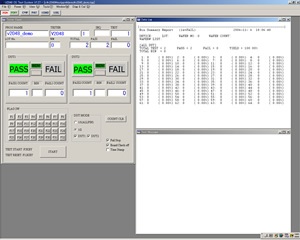

[Production screen]

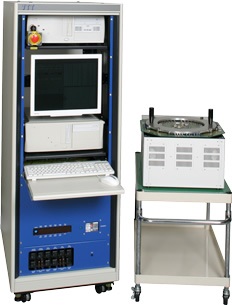

Strong support for mass production of highly integrated multi-pin devices.
You can perform up to 4 simultaneous tests.
Reasonable price setting makes it easy to add testers.
With high fault tolerance and a clear user interface, we support efficient mass production.
【Features】
･ Maximum 2048 pins (maximum 128 PMUs)
･ A large current power supply (HCDPS) of up to 60A can be installed.
･ Maximum 4DUT simultaneous measurement
･ A function function (up to 144 pins) that supports setting / reading information using JTAG, etc. is available.
Reasonable price setting makes it easy to add testers.
With high fault tolerance and a clear user interface, we support efficient mass production.
【Features】
･ Maximum 2048 pins (maximum 128 PMUs)
･ A large current power supply (HCDPS) of up to 60A can be installed.
･ Maximum 4DUT simultaneous measurement
･ A function function (up to 144 pins) that supports setting / reading information using JTAG, etc. is available.
|
Specification
|
|
|
Corresponding number of pins
|
Maximum 2048 pin view (scratch / color unevenness) inspection
|
|
Number of simultaneous measurement devices
|
4 pieces (512 pins / DUT)
|
|
Test items
|
Simple function measurement
DC parametric measurement (voltage applied current measurement / current applied voltage measurement) |
|
External dimensions and weight of the main body
|
570W×1582H×800D (mm)・200kg
|
|
External dimensions and weight of test head
|
430W×326.4H×580D (mm)・50kg
|
