Overview
-

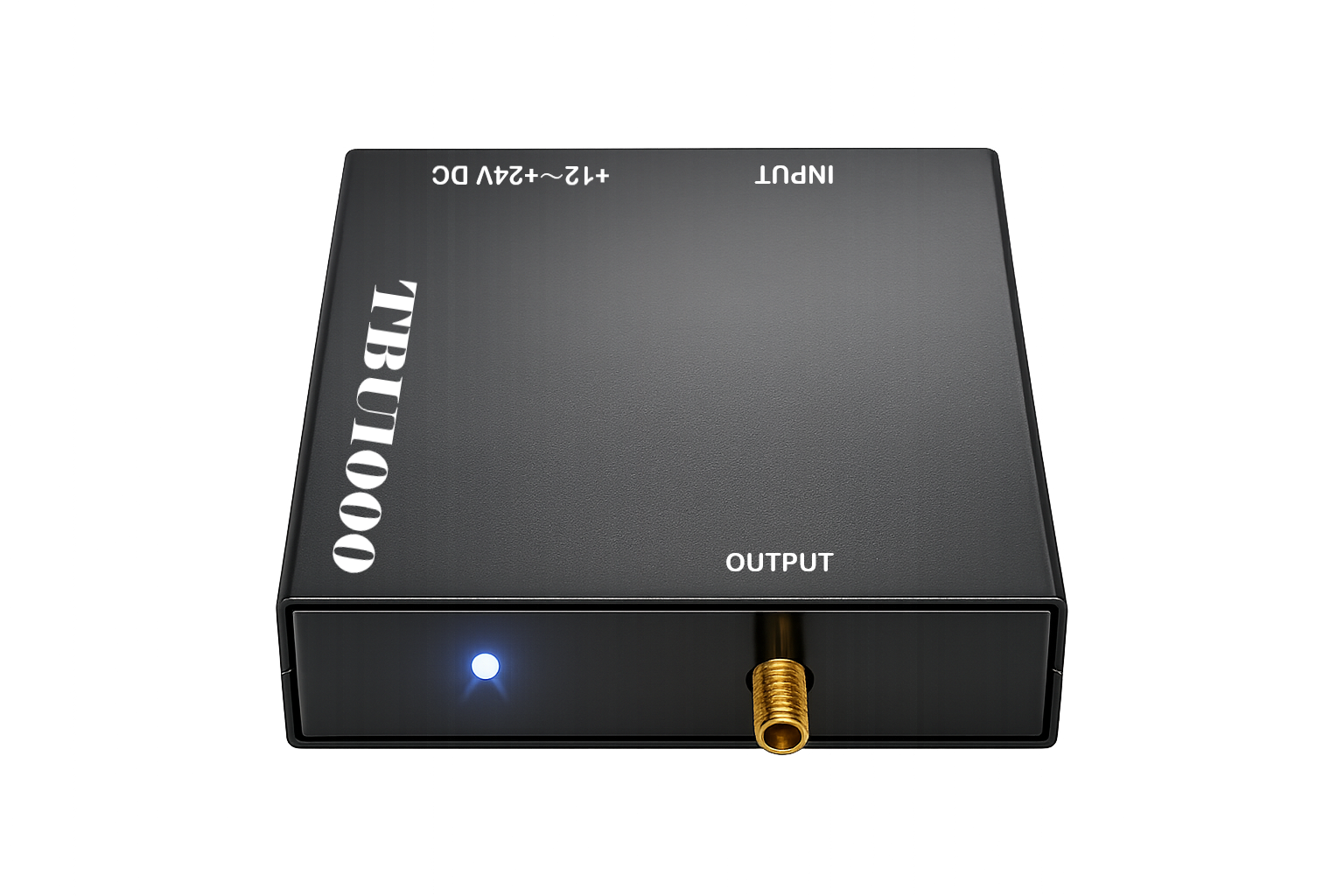

The TBU1000 is a 1W UHF band booster designed for the UHF band (800–1300 MHz).
-
It expands the transmission capabilities of the T9300 and enables high-precision measurement of tag response characteristics.
|
List of Standards
|
|
|
Test Name
|
UHF Band Booster TBU1000
|
|
Frequency Range
|
800～1300MHz
|
|
Output Power
|
1W Max.
|
|
Power Handling Capacity
|
+20dBm Max.
|
|
Input/Output V.S.W.R.
|
2 or less
|
|
Available Supply Voltage
|
+12～+24V DC
|
|
Current Consumption
|
400 mA (typ.) (when supplied with +12 V DC)
|
|
Input/Output Connectors
|
SMA-female
|
|
Dimensions and Weight
|
102 (W) × 92 (D) × 31 (H) mm (excluding protrusions), approx. 0.4 kg
|
|
Attachments
|
AC Adapter + 12V DC/1A (1 unit)
Coaxial Cable (1 m × 1) |
*Specifications, appearance, and standard values are subject to change without notice to improve performance.
